Industrial Iot Router and Vehicle Router support CAN, Bluetooth, GPS
Product Description
KS-OT-F700Q is an 11n 2.4GHz 300Mbps IoT gateway, 2*10/100Mbps RJ45 ports, 9~36V wide voltage, 48V PoE input, Support RS232 and RS485 interface; What's more, there are multiple extend ports available for IoT/Vehicle/Monitoring area.
- Support Bluetooth 5.0, with external Bluetooth antenna
- Support 4G module, can work as LTE CPE
- With temperature sensor to test and control the working temperature
- Support CAN module, realization of no-board electronic control network system in car
- Support RTC, provide correct system time even power off;
- Support GPS with external GPS antenna;
Support OpenWRT firmware, can provide strong technical support in customer firmware development.
Product Parameters
| Product Model |
KS-IoT-F700Q |
| CPU |
QCA9531 |
| Flash |
SPI NOR 16M |
| DDR |
128M |
| 2.4G Frequency |
2.4GHz - 2.484GHz |
| 2.4G WIFI Protocol |
802.11b / g / n |
| SSID Hide |
Support |
| Data Rate |
300Mbps |
| Access User |
30+ |
| 2.4G RF Power |
802.11b |
11M |
17±2dBm |
1M |
19±2dBm |
| 802.11g |
54M |
16±2dBm |
6M |
18±2dBm |
| 802.11n HT20 |
MCS7 |
15±2dBm |
MCS0 |
17±2dBm |
| 802.11n HT40 |
MCS7 |
14±2dBm |
MCS0 |
16±2dBm |
| 2.4G Receive Sensitivity |
802.11b |
11M |
-82dBm |
1M |
-94dBm |
| 802.11g |
54M |
-70dBm |
6M |
-88dBm |
| 802.11n HT20 |
MCS7 |
-68dBm |
MCS0 |
-86dBm |
| 802.11n HT40 |
MCS7 |
-66dBm |
MCS0 |
-84dBm |
| 2.4G EVM |
802.11b_11M: ≤-10dB ;802.11g_54M: ≤-25 dB ;802.11n_MCS7: ≤-28 dB |
| PPM |
±20ppm |
| LAN |
1 * 10/100 self-adaption LAN port |
| WAN |
1 * 10/100 self-adaption WAN port |
| Power |
DC: 9~36V wide voltage
PoE: 48V IEEE 802.3af PoE power, optional |
| Switch |
1* Power switch |
| SIM Card Slot |
1*SIM card slot for 4G network |
| Reset Button |
1*Reset button |
| GPS |
Optional |
| Bluetooth |
Bluetooth 5.0, optional |
| RTC |
With coin cell battery, provide correct system time even power off |
| Antenna Connector |
4G antenna X2, Ipex connector;
Bluetooth antenna X1, Ipex connector;
GPS antenna X1, Ipex connector;
WiFi antenna X2, Ipex connector |
| Extension Interface |
RS232 (DB9)
RS485 (2P 5.08 interface)
CAN (2P 5.08 interface) optional |
| LED Indicator |
SYS LED; WAN LED x1; LAN LED x1; WiFi LED; 4G LED |
| Max Power Consumption |
< 10W |
| Product Size |
120*157*16mm |
| Working Environment |
Working temperature: -20°C to 55°C;
Extreme working temperature: -40°C to 55°C;
Storage temperature: -40°C to 70°C;
Humidity: 5%~95% (No condensation) |
4G Data Rate:
| 4G protocol |
Cat6 |
| LTE-FDD Band |
B1/B3/B5/B7/B8/20/B28/B32 |
| LTE-TDD Band |
B38/B40/B41/B42/B43 |
| WCDMA |
B1/B3/B5/B8 |
| LTE-FDD Speed |
Downlink: 300Mbps, Uplink: 50Mbps |
| LTE-TDD Speed |
Downlink: 226Mbps, Uplink: 28Mbps |
| DC-HSDPA/HSUPA |
Downlink: 42Mbps, Uplink: 5.76Mbps |
| WCDMA |
Downlink: 384kbps, Uplink: 384kbps |

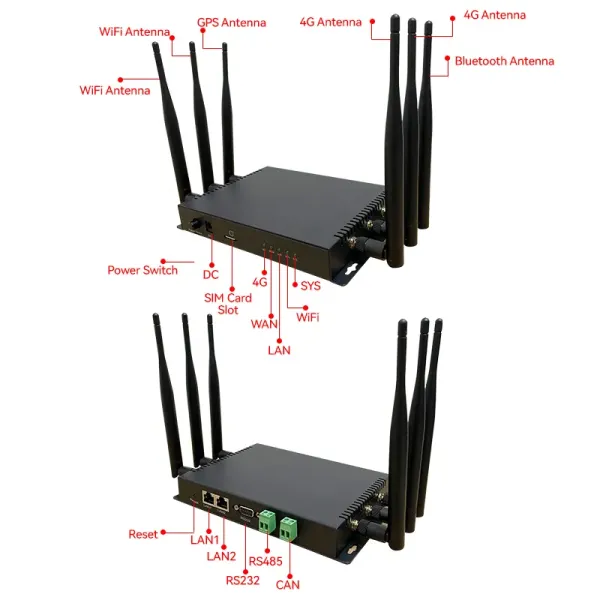

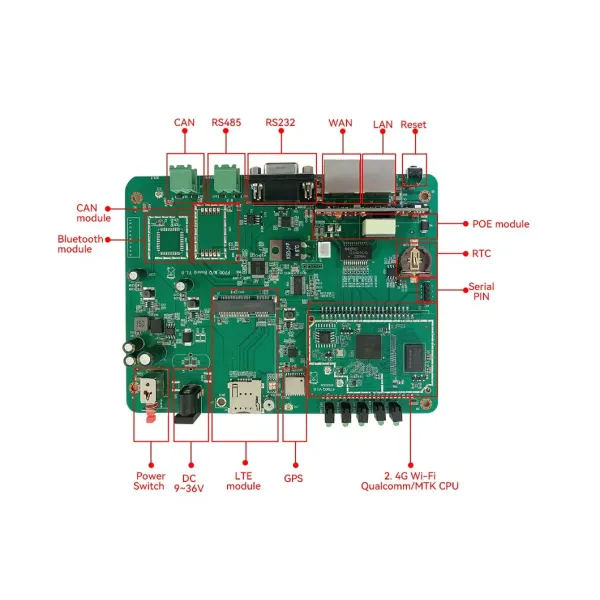

Detailed Photos

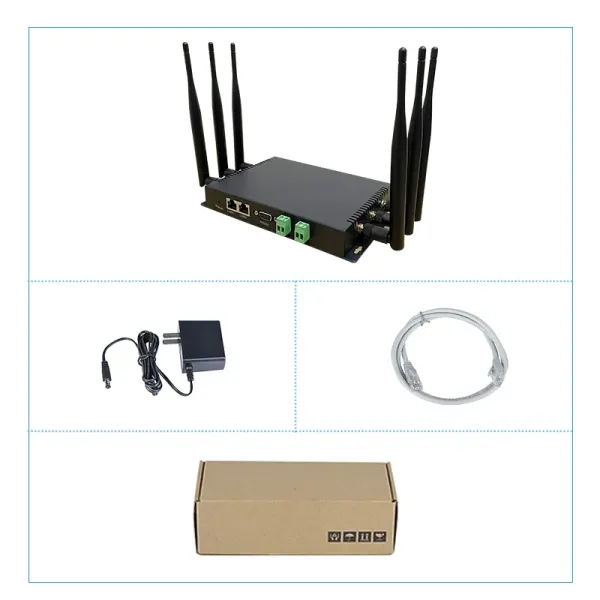

Packaging & Shipping
After Sales Service
2 Years warranty
FAQ
1. Firmware
We developped an Openwrt firmware, which added the driver for 4G, CAN, Bluetooth...
We can share this Openwrt firmware to customer, customer can develop their applications based on this firmware.
2. Can delete Wi-Fi, 4G or other functions if no need.
